Pins stay on the hook. Tailgates stay shut.

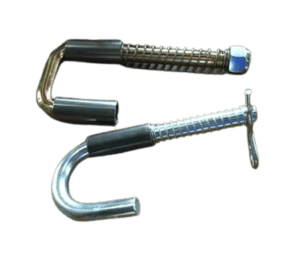

HardwareMFG builds 9/16″ locknut and 7/16″ hair-cotter latch kits in the Midwest for tailgate latching and ramp retention. Roll-threaded J-hooks with weld-on tubes, spring, and nut. Custom and standard sizes.
Traditional hairpin J-hooks shed pins on rough roads, snag clothing and arms, and jam when the top takes an impact or a boot. Import wire often runs nominal 7/16″ or 1/2″. A production trailer should not ship with that fight built in.
Why it holds
Threaded rod and locknut stay put on rough roads. The tailgate is not supposed to flop open in transit.
The locknut kit drops the sharp cotter that catches sleeves and skin.
Impact or a boot used as a step is less likely to jam the hook so someone has to hammer it loose.

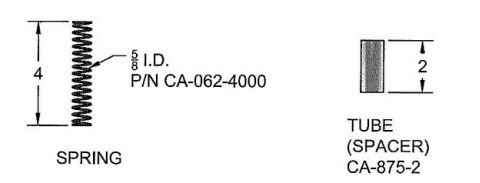

9/16″ wire vs common import 7/16–1/2″. Yellow zinc dichromate. Two un-plated tube diameters (CA-875-2, CA-1125-1.5) for frame and tailgate fit.

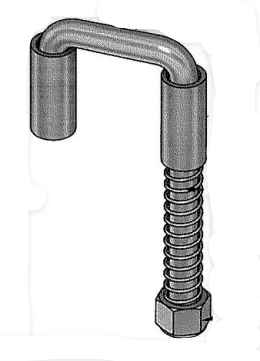

Pick the assembly that matches your print. Each kit ships hook, spring, and weld-on tubes together, not a loose J-bolt from a fastener house. Custom and standard sizes.
Tell us which kit you need, the quantity, and anything your print calls out. HardwareMFG quotes from the Midwest.
Also from HardwareMFG when the trailer build needs latching beyond a J-hook kit.

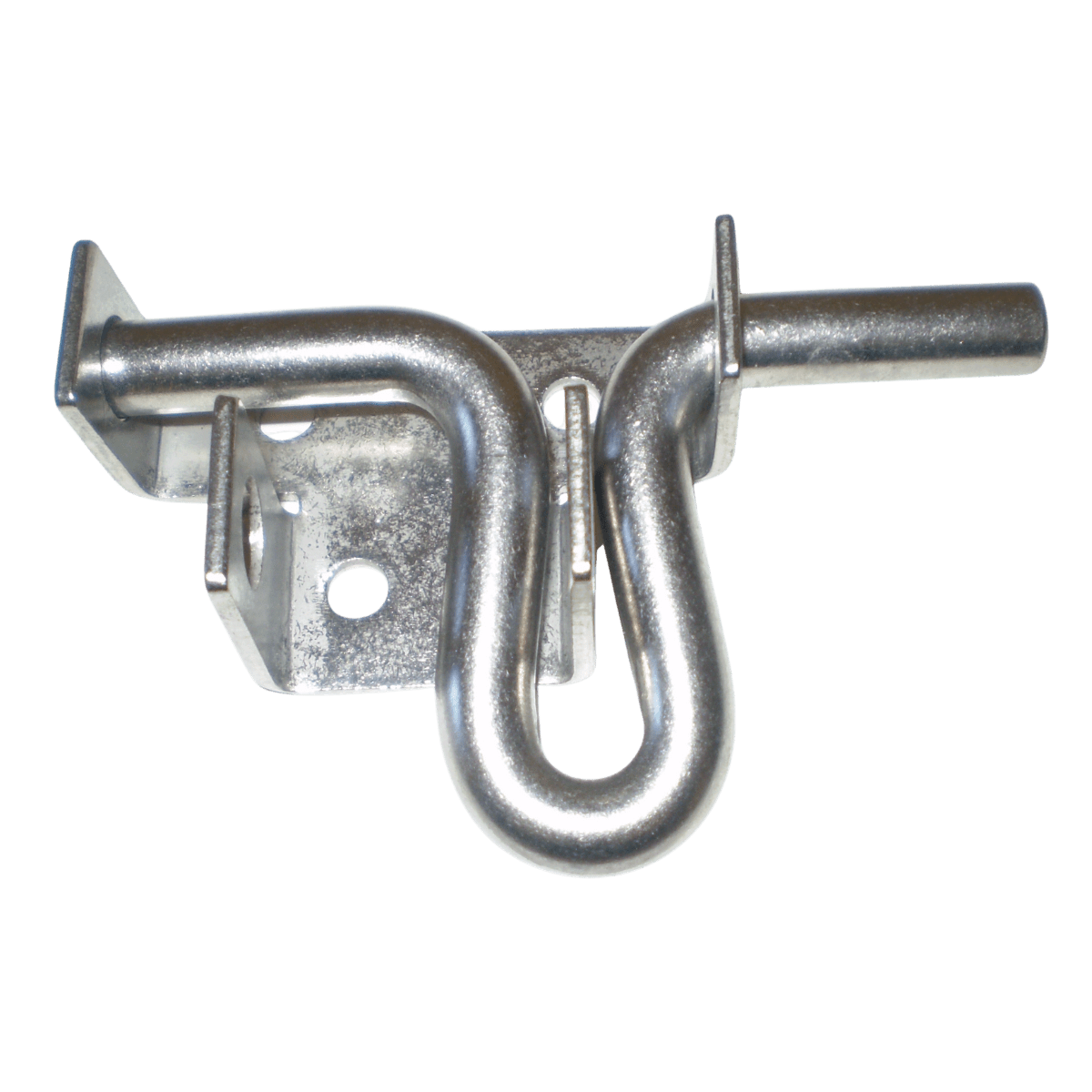

Left- or right-hand slide bolt for gates, doors, and panels. Industrial, commercial, and agricultural.
Precision mechanical parts and custom assemblies from HardwareMFG's Midwest plant network.
Latches for removable fenders on trailer builds.
Yes. Large-volume OEM orders for Tailgate J-hook latch kits ship from the manufacturing plant with consistent supply.
Yes. Custom and standard sizes on the J-hook and kit lines. For large-volume changes to the locknut design, send the print to sales@hardwaremfg.com.

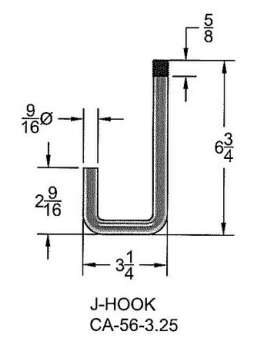

Steel J-hook CA-56-3.25 is CRS or Type 1018 or 1215. Yellow zinc dichromate on the locknut kit, or silver zinc on the traditional kit. Tubes are the same steels, un-plated for weld. An all-aluminum J-hook (3/4″ diameter) is available.

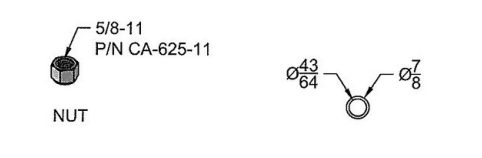

Angles ±1°. Dimensions to two places ±.015, to three places ±.005. Full numbers are on the drawing and the J-Hook PDF.
Tell us which kit you need, the quantity, and anything your print calls out.
